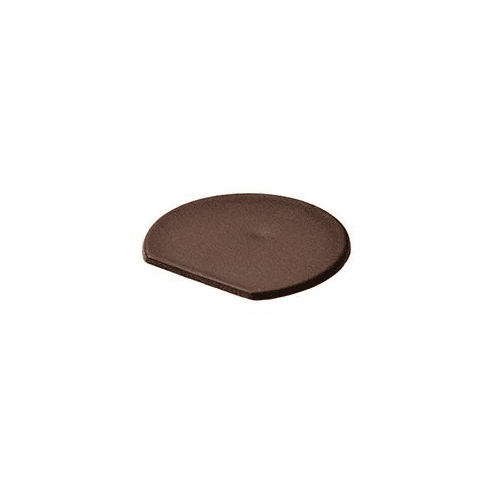

Hafele 263.59.130 Rafix Covercap, plastic, brown, for flush rafix

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.59.130

  Product Title: Trim Cap, for Rafix 20 Flush, Ixconnect, Brown

  Category: Trim Cap, for Rafix 20 Flush, Ixconnect

  Item Details …

  - For Rafix 20 flush

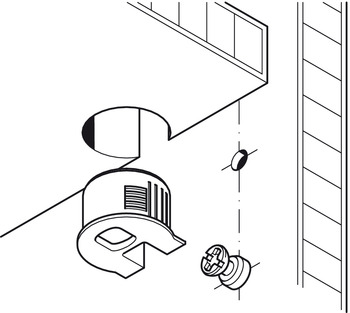

  - Area of application : For Rafix 20 flush fitting

  - Material :

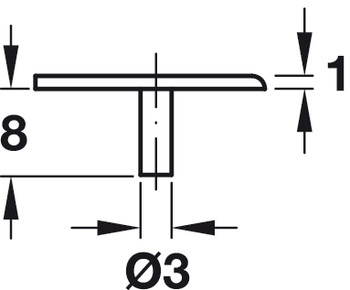

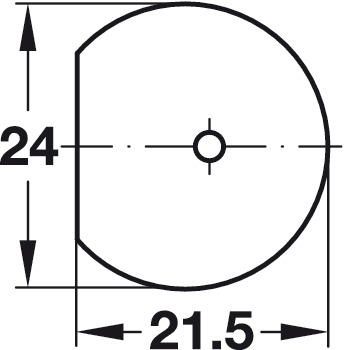

  - Head Ø : 24.00 mm

  - Head height : 1.00 mm

  - Shaft Ø : 3.00 mm

  - Shaft height : 8.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.6



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.21-11.21.pdf

  Hafele 263.59.130, 263-59-130, 26359130, 263.59


  Specifications/Hafele Catalog - Page# FC11.23: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
