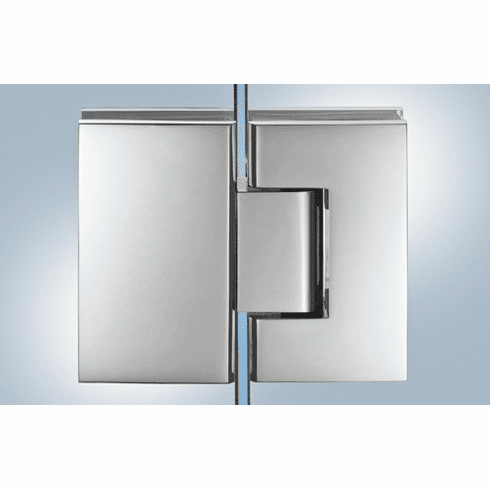

Hafele 981.53.182 Shower Door Hinge, 180 degree, Aquasys for glass thickness: 8-12 mm

Product Information

• Description

  Hafele 981.53.182 Shower Door Hinge, 180°, Aquasys
  for glass thickness: 8-12 mm



  For glass thickness : 8-12 mm

  Application : For glass thickness 8 - 12 mm

  Material : Brass

  Finish : Chrome plated polished

  Features : With automatic closing from opening angle 25°

  Mounting : For DIN left and DIN right hand use

  Load bearing capacity : ‰¤30 kg with 2 door hinges kg

  Opening angle : With seal 90°, opens outwards at one side

  Installation : For clamp fixing with hexagon socket head screws



  Order reference :

  The scope of delivery does not include the glass door seal. Please order separately.
