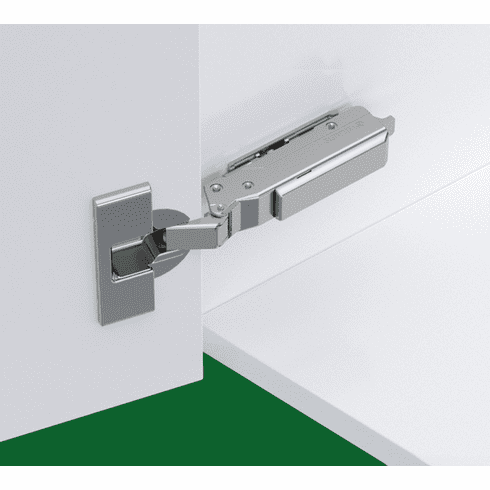

Hafele 348.36.601 Concealed Hinge, Grass TIOMOS, 120 degree Opening Angle, Full Overlay Self-Close, screw-on, model F045138486228

Product Information

• Description

  Hafele 348.36.601 Concealed Hinge, Grass TIOMOS, 120� Opening Angle, Full Overlay
  Self-Close, screw-on, model F045138486228



  Opening angle : 120 �

  Application : A hinge system for all door applications
  For large door overlay up to 24 m

  Overlay : Full

  Features : 3 soft close settings, invisibly integrated in arm

  Adjustment : Side adjustment from -2 to +2 mm
  Depth adjustment from -2 to +3 mm
  Height adjustment max. �2.5 mm depending on the mounting plate

  Material : Cup and hinge arm: Steel

  Note :

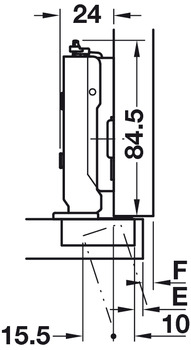

  The dimensions specified in the drawings are calculated with a mounting plate height of 2mm (3/32��).
