Hafele 343.62.503 Concealed Hinge, Salice Face Frame 3 Cam, 106 degree Opening Angle, Self Close 3/4" Overlay, model CSP3499XR Screw-on

Product Information

• Description

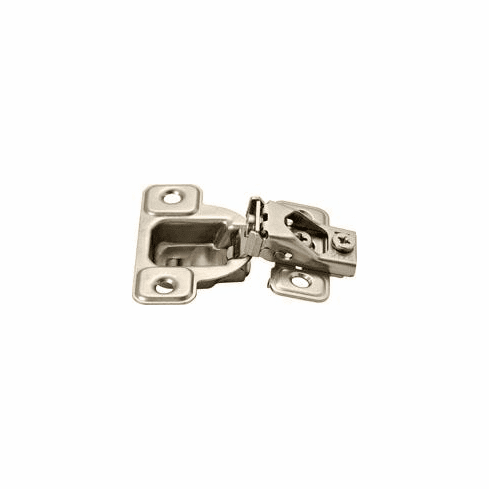

  Hafele 343.62.503 Concealed Hinge, Salice Face Frame 3 Cam, 106° Opening Angle, Self Close
  3/4" Overlay, model CSP3499XR Screw-on



  Opening angle : 106 °

  Features : Zero door protrusion

  Adjustment : 3-way adjustment with wing plate

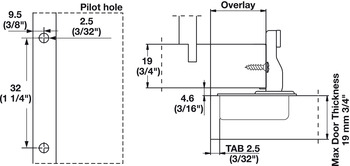

  Drilling depth : Hinge cup: (7/16") 11 mm

  Tab : Fixed at (3/32") 2.5 mm

  Type of closing : Self-close

  Drilling Pattern : 45/9.5

  Material : Steel

  Finish : Nickel

  Note :

  Additional overlays available.
