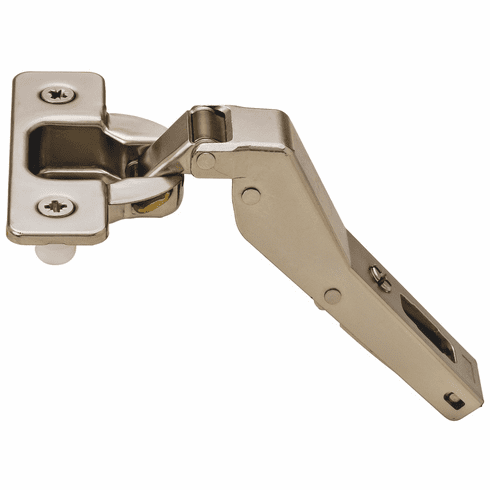

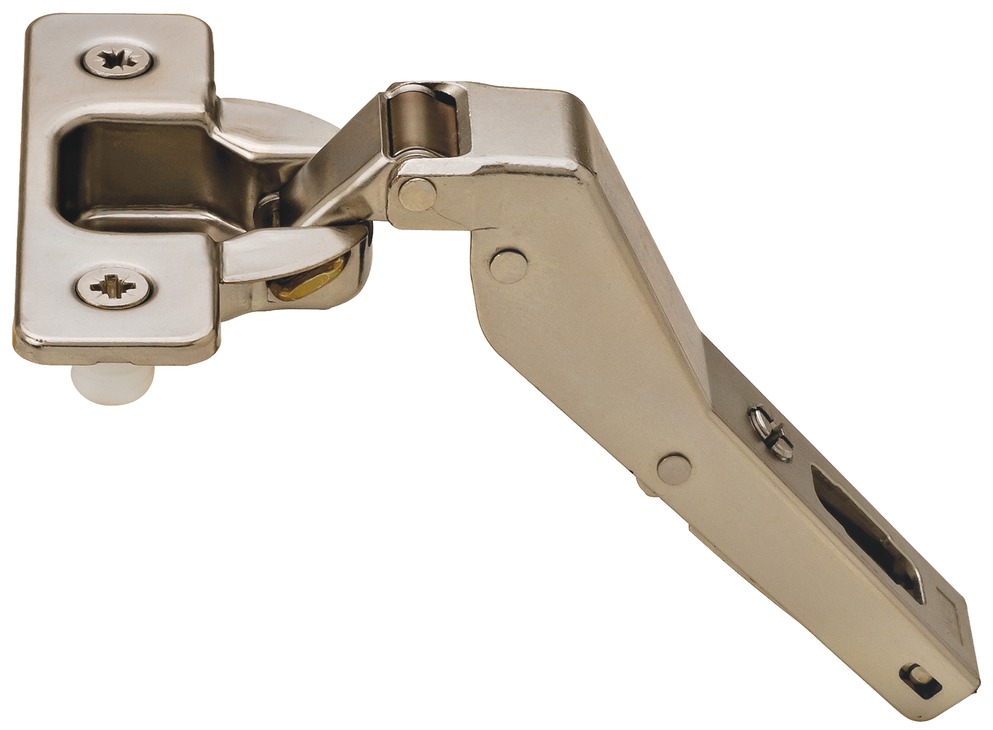

Hafele 329.96.517 + 45 degree Corner Hinge, Salice, 94 degree Opening Angle, Self-Close, Overlay Press-fit, C2RBM99AC

Product Information

• Description

  Hafele 329.96.517 + 45° Corner Hinge, Salice, 94° Opening Angle, Self-Close, Overlay
  Press-fit, C2RBM99AC



  Opening angle : 94 °

  Type of closing : Self-close

  Tab : 3 - 9 mm

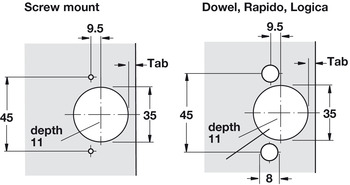

  Drilling depth : 11 mm

  Overlay : Overlay

  Adjustment : Side adjustment up to +4.5 mm
  Height adjustment from -2 to +2 mm

  For door thickness : (5/8 - 1 3/8") 16 - 35 mm

  Material : Steel

  Finish : Nickel-plated





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.25-9.29.pdf

  Hafele 329.96.517, 329-96-517, 32996517, 329.96


  Specifications/Hafele Catalog - Page# FC9.34: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
