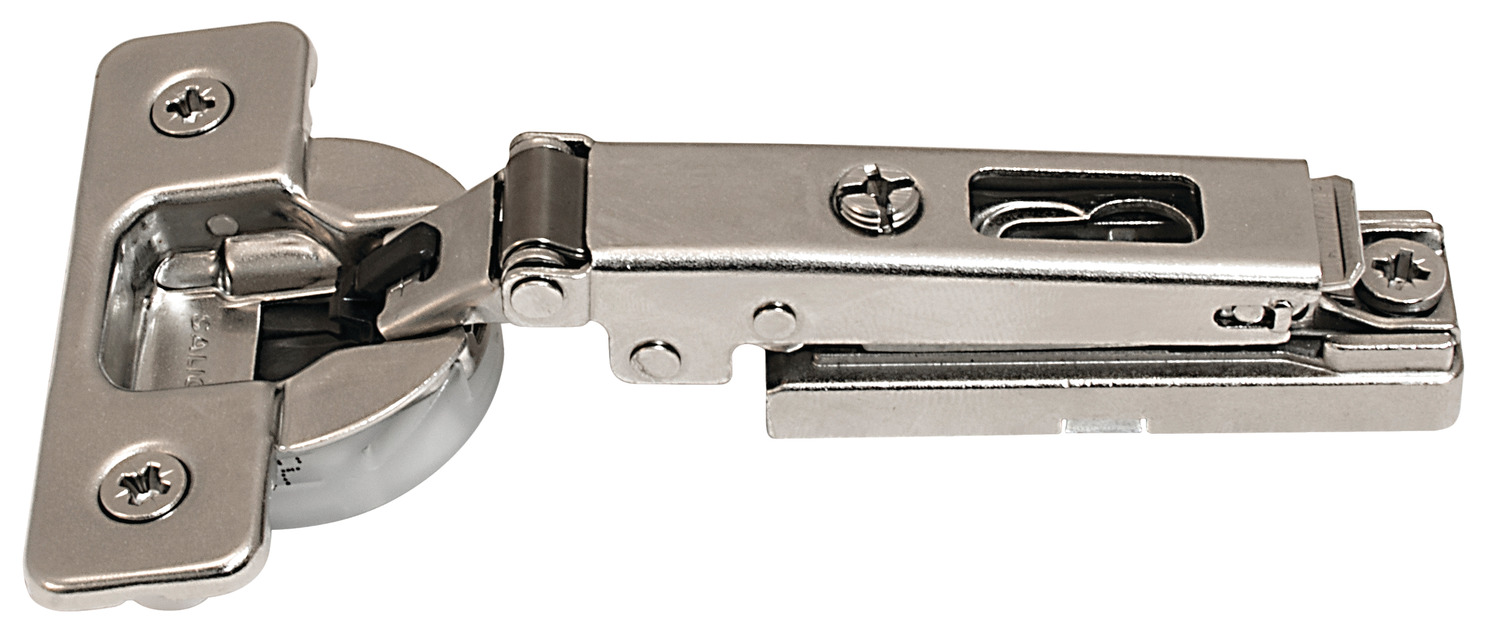

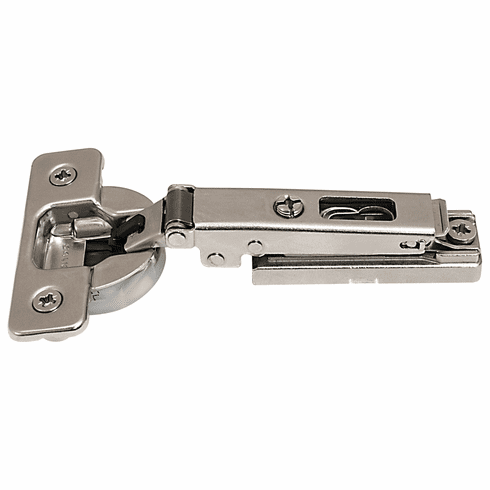

Hafele 329.17.106 Concealed Hinge, Salice 200 Series, 110 degree Opening Angle, Silentia+, Nickel Plated 1/2" Overlay, C7P6DE9, Screw-on

Product Information

• Description

  Hafele 329.17.106 Concealed Hinge, Salice 200 Series, 110° Opening Angle, Silentia+, Nickel Plated
  1/2" Overlay, C7P6DE9, Screw-on



  Opening angle : 110 °

  Type of closing : New soft close adjustment switch

  For door thickness : (11/16 - 1 3/8") 18 - 35 mm

  Tab : 3 - 9 mm

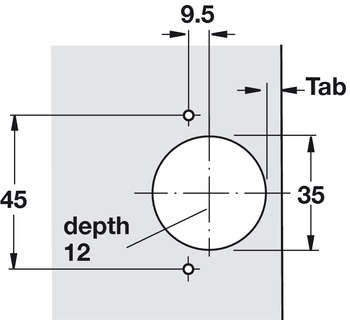

  Drilling pattern : 45/9.5 mm

  Material : Steel

  Finish : Nickel plated
